Delete Application - How to

The Delete Application allows you to delete any lines, points and other objects in your file whether added manually or imported from your file.

Exception: it is not possible to delete CAD elements that are part of the original DWG, DXF, or IFC imported into your project.

How to Delete Objects?

• Open Your Project: Start by opening any project on your tablet.
• Open Application: Either from the home screen or from the side menu in CAD view.

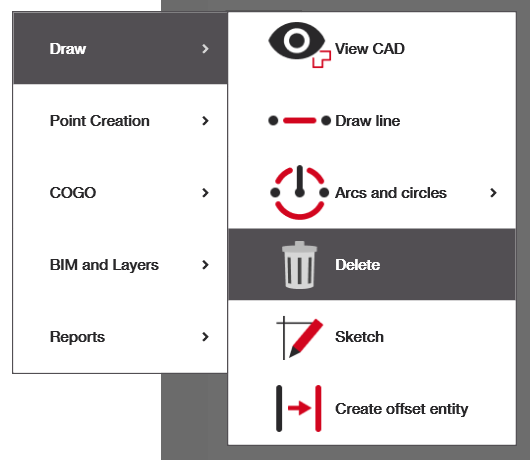

  • If you do not have the 'Delete Application' in the home screen, you can select add shortcut and add the application shown below, or navigate to it from the navigation menu.

• Select an Object: Select the points, lines or objects you want to delete. These should turn red once selected - to "unselect" an object, simply tap it again. Once done selecting all the objects you wish to delete, click on the green checkmark on the right hand side to delete.

  To reset all selections, simply tap the reset button on the right side of the screen:



  4 important things to remember:

• You can only delete objects of the same type all at once
• You cannot delete points that are used in the active station setup
• You cannot delete objects that are part of the original CAD file imported
• Once deleted, objects cannot be recovered. Any linked data to the deleted object will also be deleted.
