Arc 3 Points Application - How to

If you want to create an arc using points from your file, you can use the Arc 3 Points application. This is useful for structural layout and for creating any arcs or curved surfaces in walls, domes, flooring plans, etc.

How to Create an Arc from 3 Points?

1. Open Your Project: Start by opening any project on your tablet.
2. Open Application: Either from the home screen or from the side menu in CAD view.
   • If you do not have the 'Arc 3 Points Application' in the home screen, select add shortcut and add the application shown below.

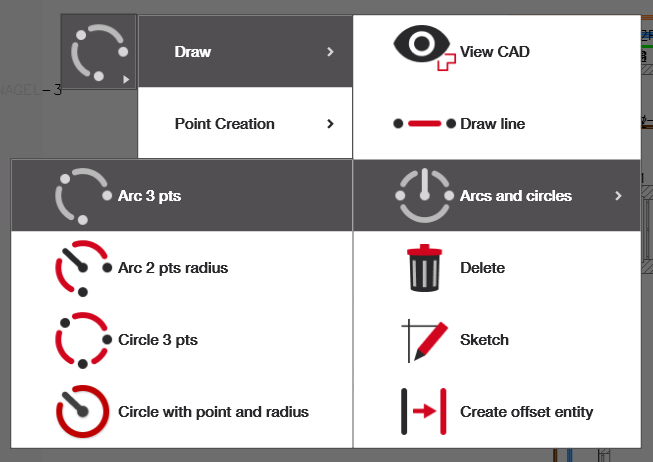

   • To open it from the lefthand side menu, follow this path: Draw > Arcs and circles > Arc 3 pts
3. Select Three Points and Create Arc: Follow the prompts to get your output.

Select your three reference points in the correct order. Once selected, these points should turn red and a curve should appear passing through all of them. If you wish to deselect a point or start again, simply click on your selected points again. When you are done, click on the green check mark to the right and your new curve will be added to your drawing.

Note: You cannot select three points that are in a horizontal line.
