Circle With Point and Radius Application - How to

If you want to create a circle from a point, you can use the Circle With Point and Radius application. This application is also useful if you want to define a specific radius in your circle. If you want to create a circle from three points see Circle 3 Points Application - How to.

How to Create a Circle from a Point & a Radius?

1. Open Your Project: Start by opening any project on your tablet.
2. Open Application: Either from the home screen or from the side menu in CAD view.

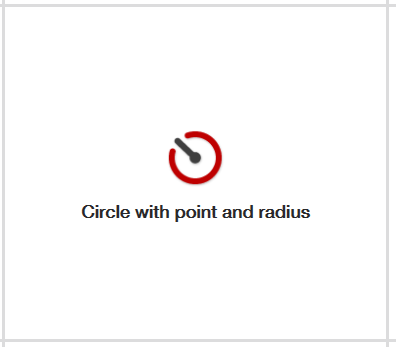

   • If you do not have the 'Circle With Point and Radius Application' in the home screen, select add shortcut and add the application shown below.

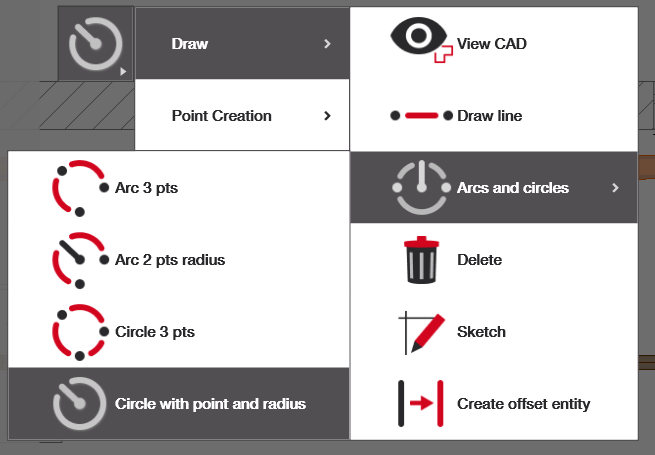

   • To open it from the lefthand side menu, follow this path: Draw > Arcs and circles > Circle With Point and Radius

3. Select Points & Define Radius: Follow the prompts to create your circle.

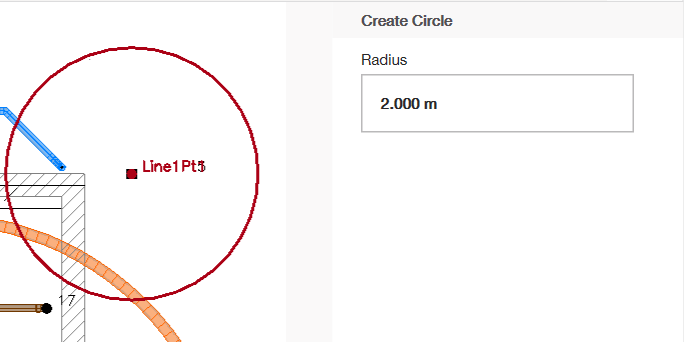

Select your reference point (in this case your vertex, or, center of circle). This point should turn red and a red circle should appear around it. To change and adjust the size of the circle you can edit the radius length on the upper right hand side. Once done click on the green checkmark on the right to add the circle to your drawing.
