Understanding Prism Constants

When a total station measures distance, it does not measure to the physical surface of the prism or reflector you see. Instead, it measures to an internal reference point inside the prism or target.

A prism constant is a small distance correction (usually in millimeters) that tells the total station how far that internal reference point is from the physical target you are aiming at.

In simple terms:
The prism constant ensures the measured distance ends exactly where you expect it to—at the physical prism or target.

Different prisms and reflectors are built differently:

• Some prisms reflect the laser deeper inside the housing
• Some reflect it closer to the surface

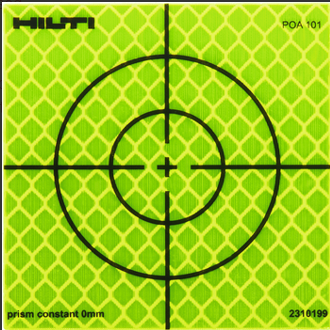

• Reflector tape behaves differently than glass prisms
• Laser (prism‑less or direct read) measurements reflect directly off the surface being measured

Because of these physical differences, the total station needs a small correction so that:

“Measured distance” = “Real distance on the jobsite.”

That correction is the prism constant.

Hilti makes prism constants easy to find.

To view them:

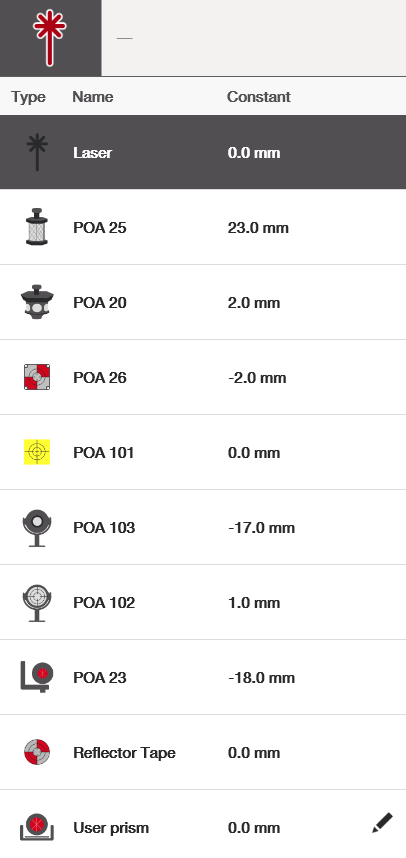

1. Tap the target icon at the top of the screen
2. Open the target selection menu
3. You will see all supported Hilti prisms and targets, along with their associated prism constants

For more details on each target and the measurement ranges you can achieve, refer to this supporting article.

In practice:

• Common Hilti prisms and targets already have known, predefined constants
• The software automatically associates the correct constant with the selected target
• Users are not expected to calculate or understand prism physics

Unless you are using a prism that is not included in Hilti’s standard target list, there is typically nothing to enter or remember. Only “User Prism” constants must be entered manually.

If the prism constant is incorrect:

• Every measured point is shifted slightly along the line of sight
• The shift is usually small (millimeters), but:
  • It applies to every point
  • It can become noticeable in high‑precision layout work
  • Establishing an accurate stationing will be challenging

Important to understand:

• The direction of the measurement is still correct
• Only the distance along that direction is affected

Nothing rotates, flips, or skews. It is a simple straight‑line offset.

The prism constant is defined by the manufacturer, not by the software.

You can usually find it:

• Printed directly on the prism housing
• On the packaging
• In the product documentation provided at purchase

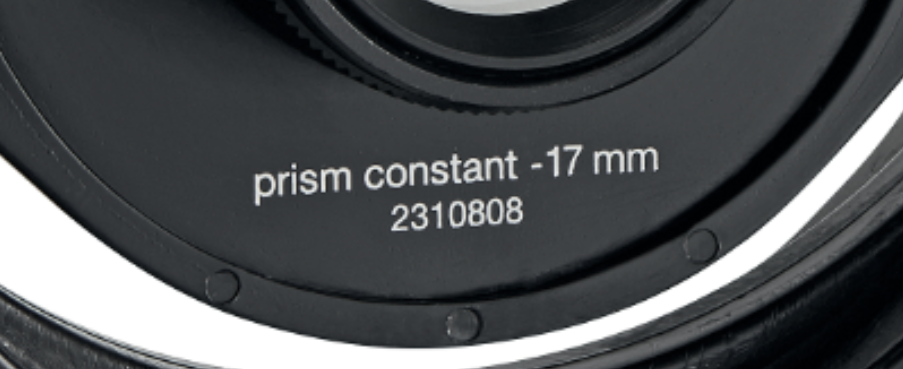

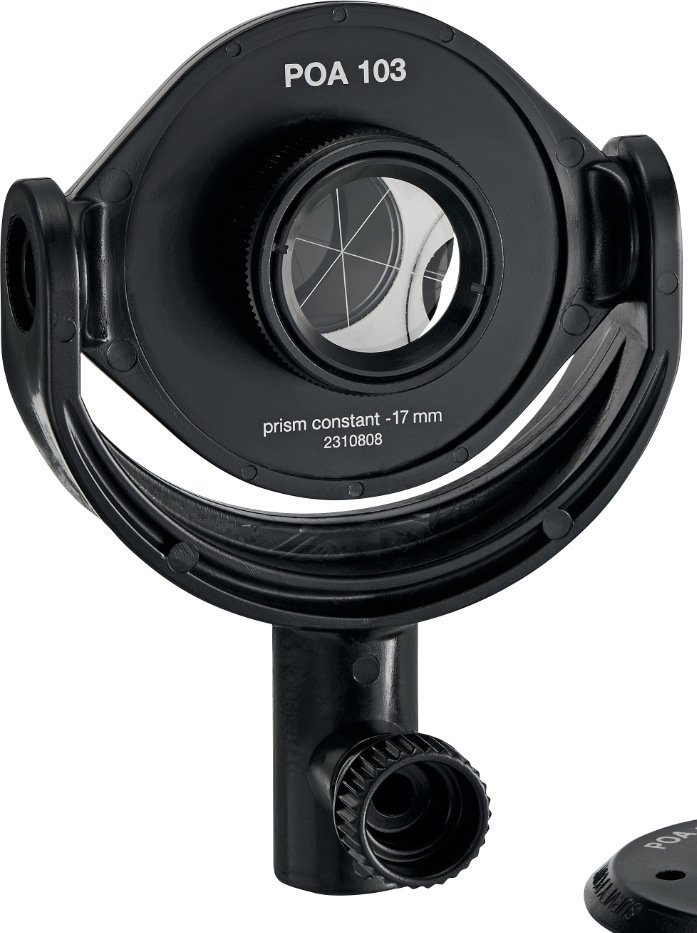

For example, on the POA 103, the prism constant is clearly marked as −17 mm on the prism itself. Most prism manufacturers follow similar labeling conventions.
