Using the Camera View

  • Updated

Overview

The Camera View in HCL provides a live visual feed from the PLT to support accurate positioning, alignment, inspection, and verification tasks.


Both PLT 300 and PLT 400 use the same core camera view concept, while the PLT 400 includes additional configuration and overlay options for more advanced use cases.

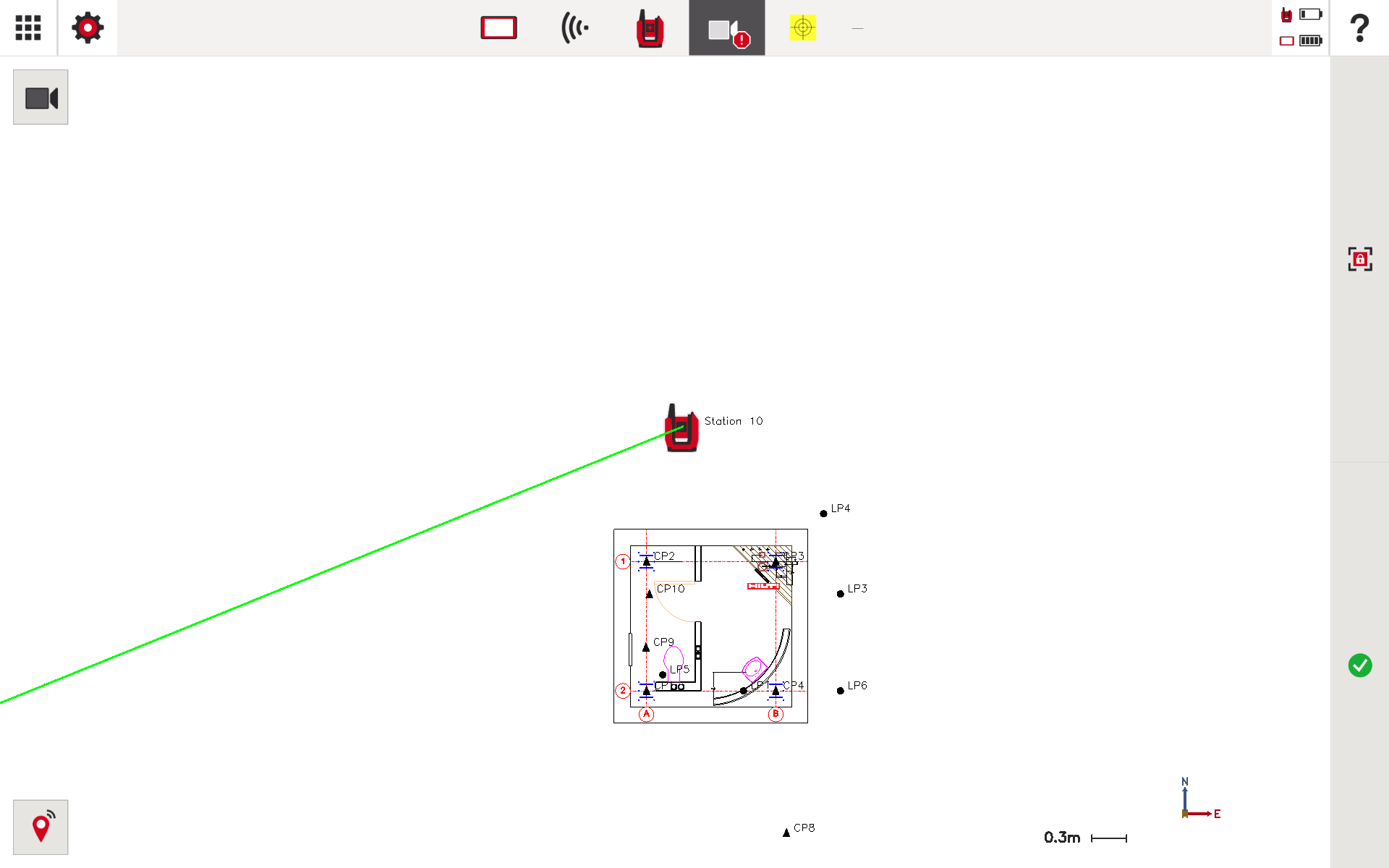

To open the Camera View, open the View CAD application and click the camera icon at the top of the screen.

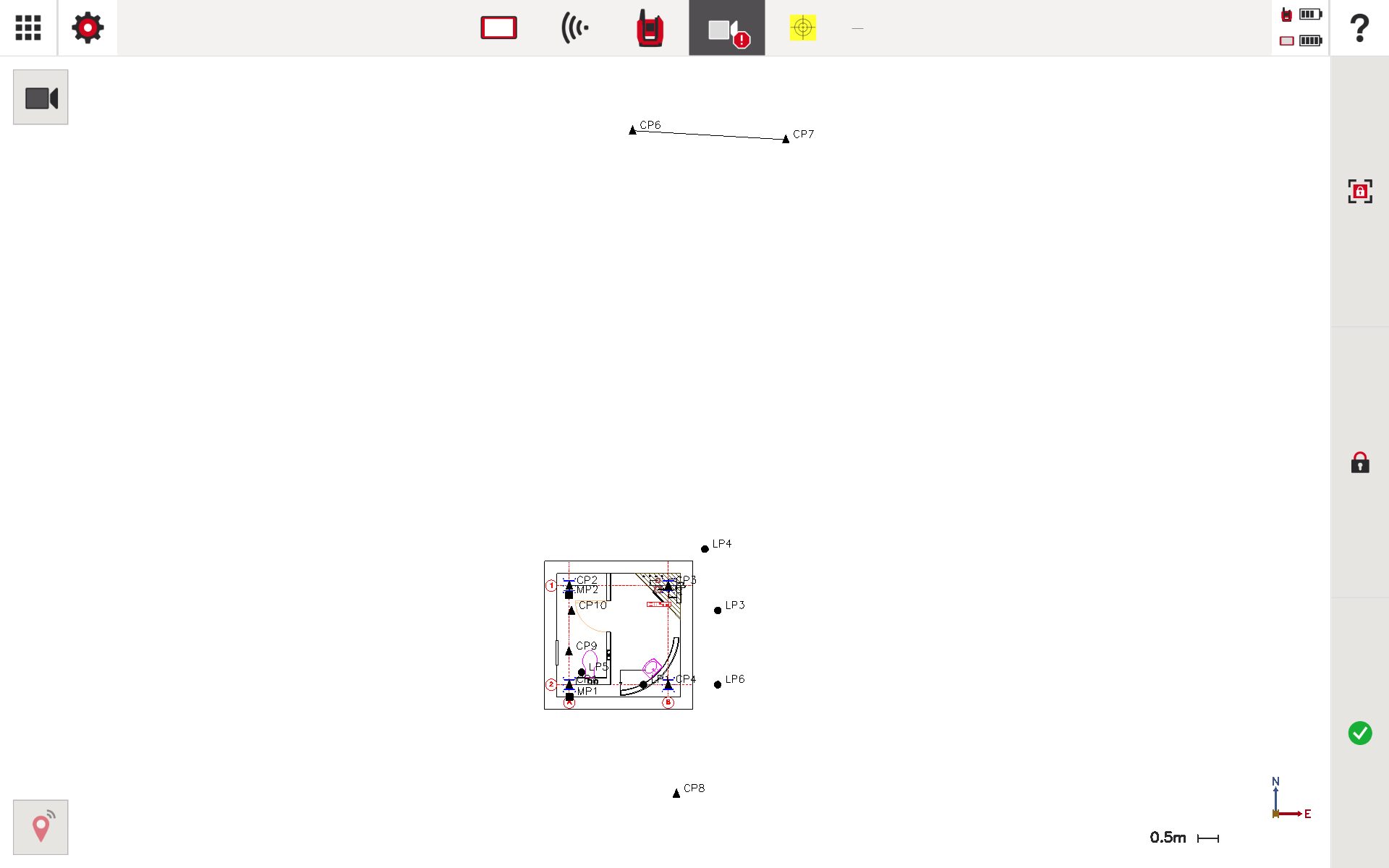

Example of the camera icon, if a lock symbol is shown, the device is locked onto a target

Camera View on the PLT 300 Demo



Key Interface Elements (PLT 300)

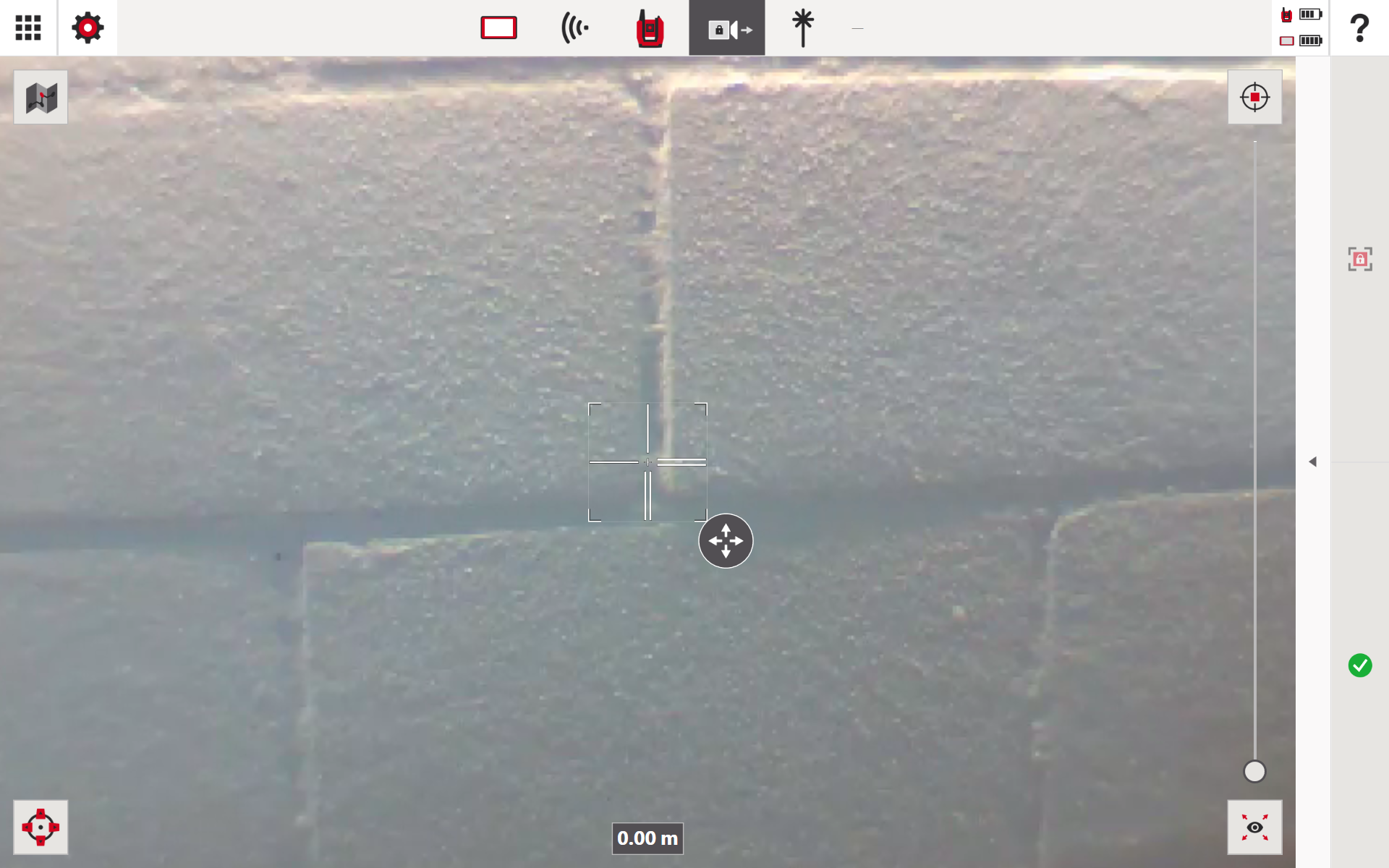

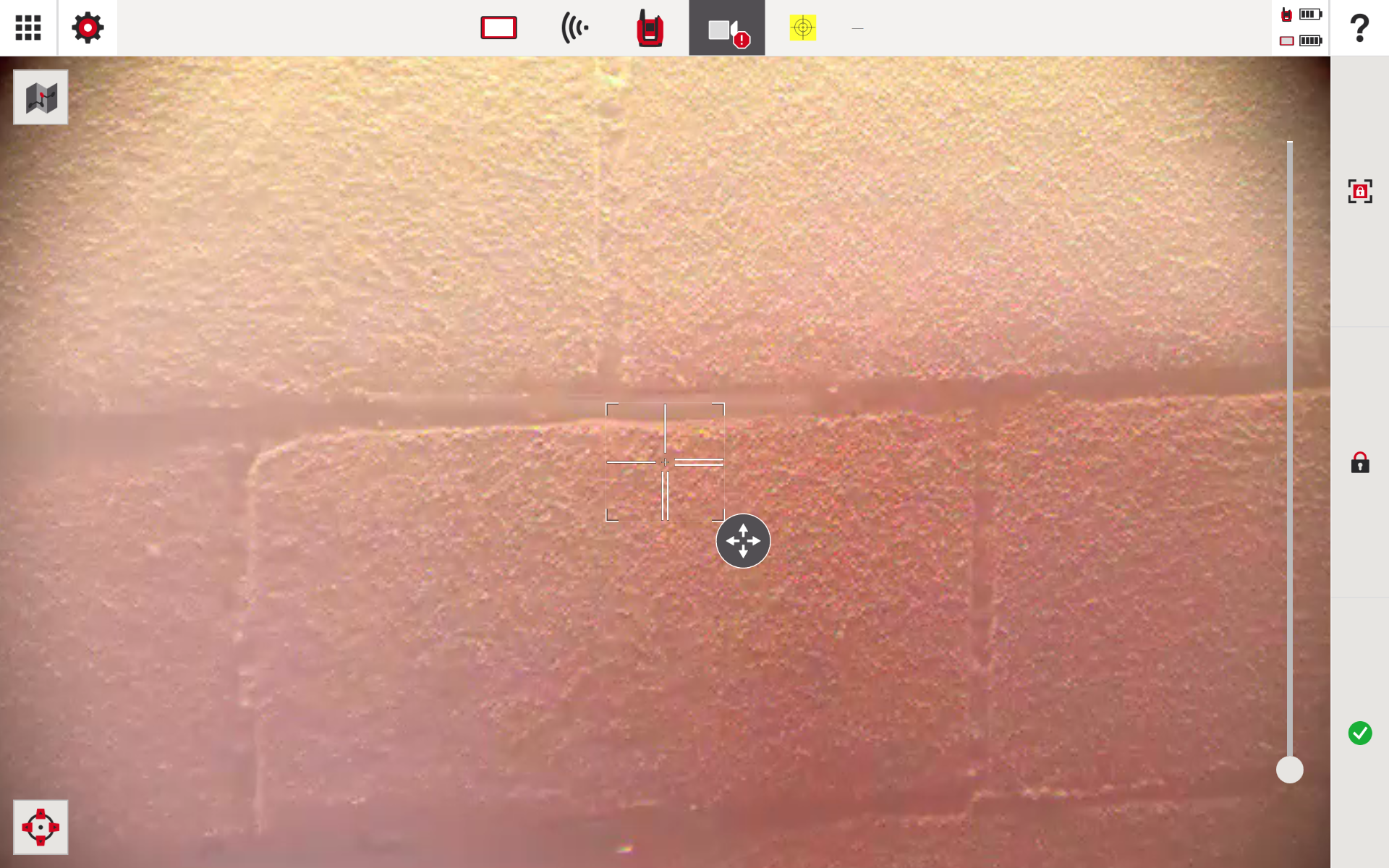

Live camera image displayed full screen, with a zoom control slider on the right side for magnification

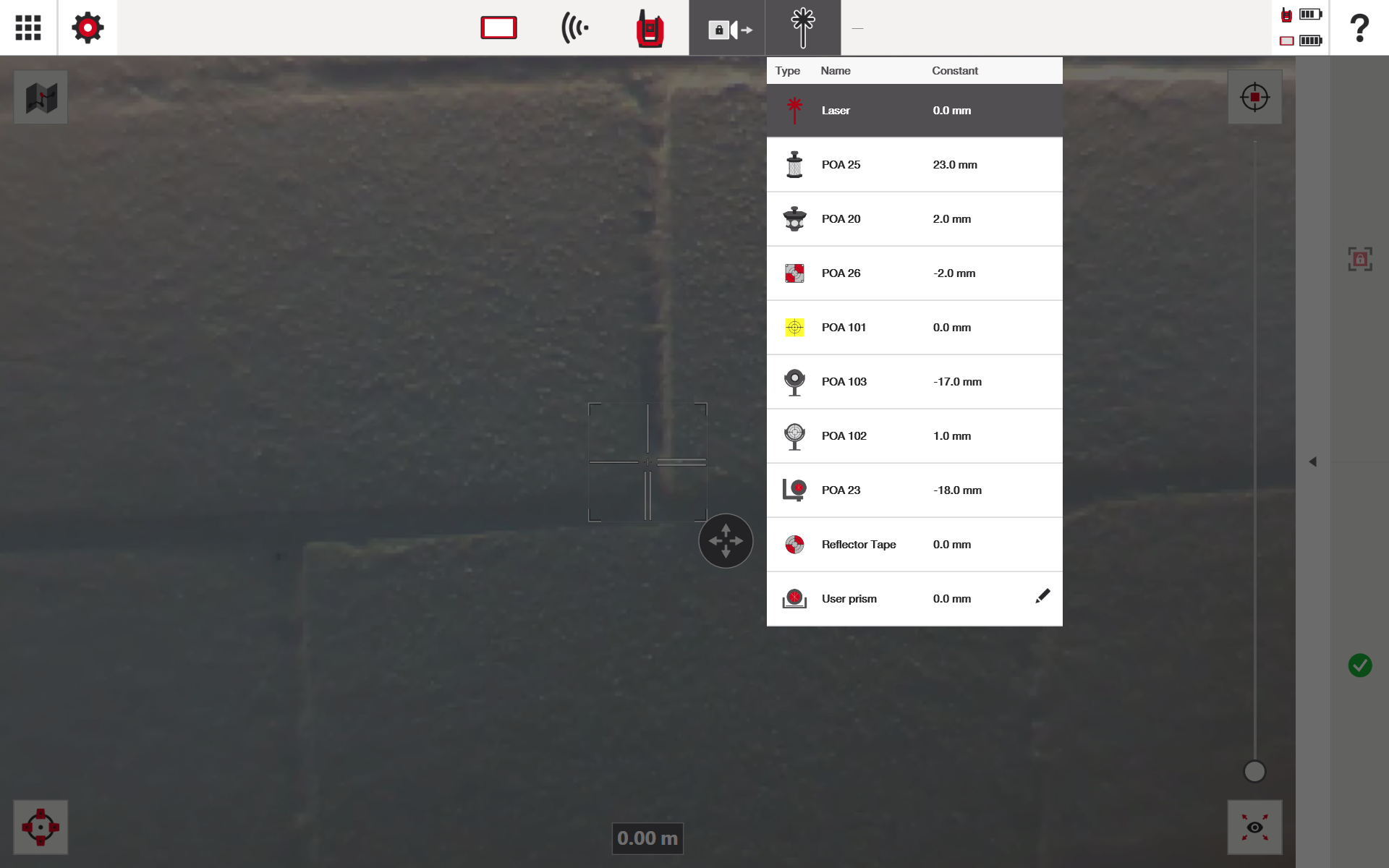

On the top of the screen, you can select the prism or target type, as well as laser measurement if necessary

Central crosshair indicates the current target point with a move or pan indicator showing directional adjustment when Smart Target is enabled

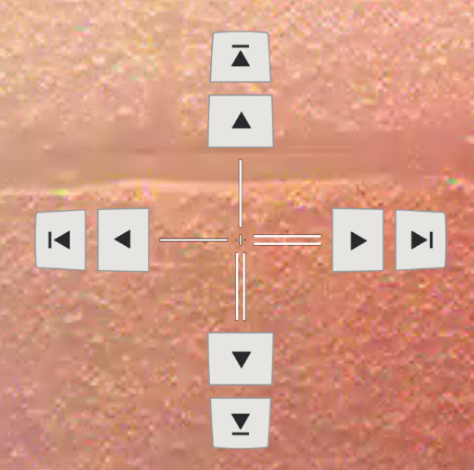

The icon in the bottom left changes how the crosshair moves, and adds buttons for small directional adjustments

This icon in the top right searches for a target in the camera view, and locks onto a prism or target

The lock icon on the middle right locks the current view of the PLT

Green check mark on the bottom right confirms the selected camera position of the PLT

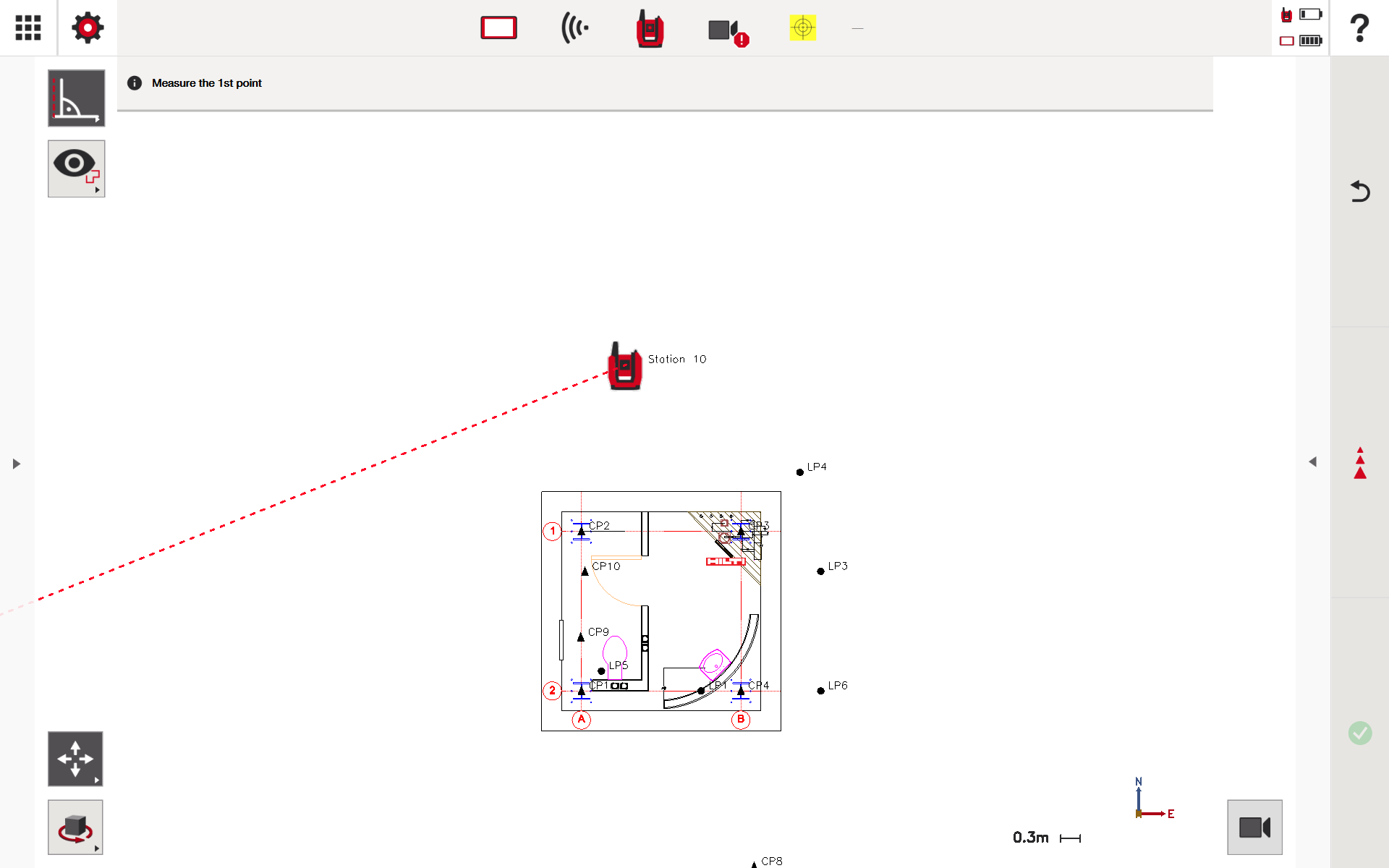

While in camera view, clicking the camera icon in the top left opens the CAD view of the drawing

Then, clicking the camera icon in the top left will bring back the camera view

When GPS is enabled, this "find me" icon in the bottom left allows the PLT to search for the tablet within the permitted angle, for more information, refer to this article

Camera View on the PLT 400 Demo

The PLT 400 camera view builds on the PLT 300 functionality and adds camera configuration and overlay customization to support more complex inspection, alignment, and guidance scenarios

Key Interface Elements (PLT 400)

Live camera image displayed full screen, with a zoom control slider on the right side for magnification

The icon at the top of the zoom slider zooms the camera in to center the target and make it clearly visible

The icon at the bottom of the zoom slider zooms out the camera view

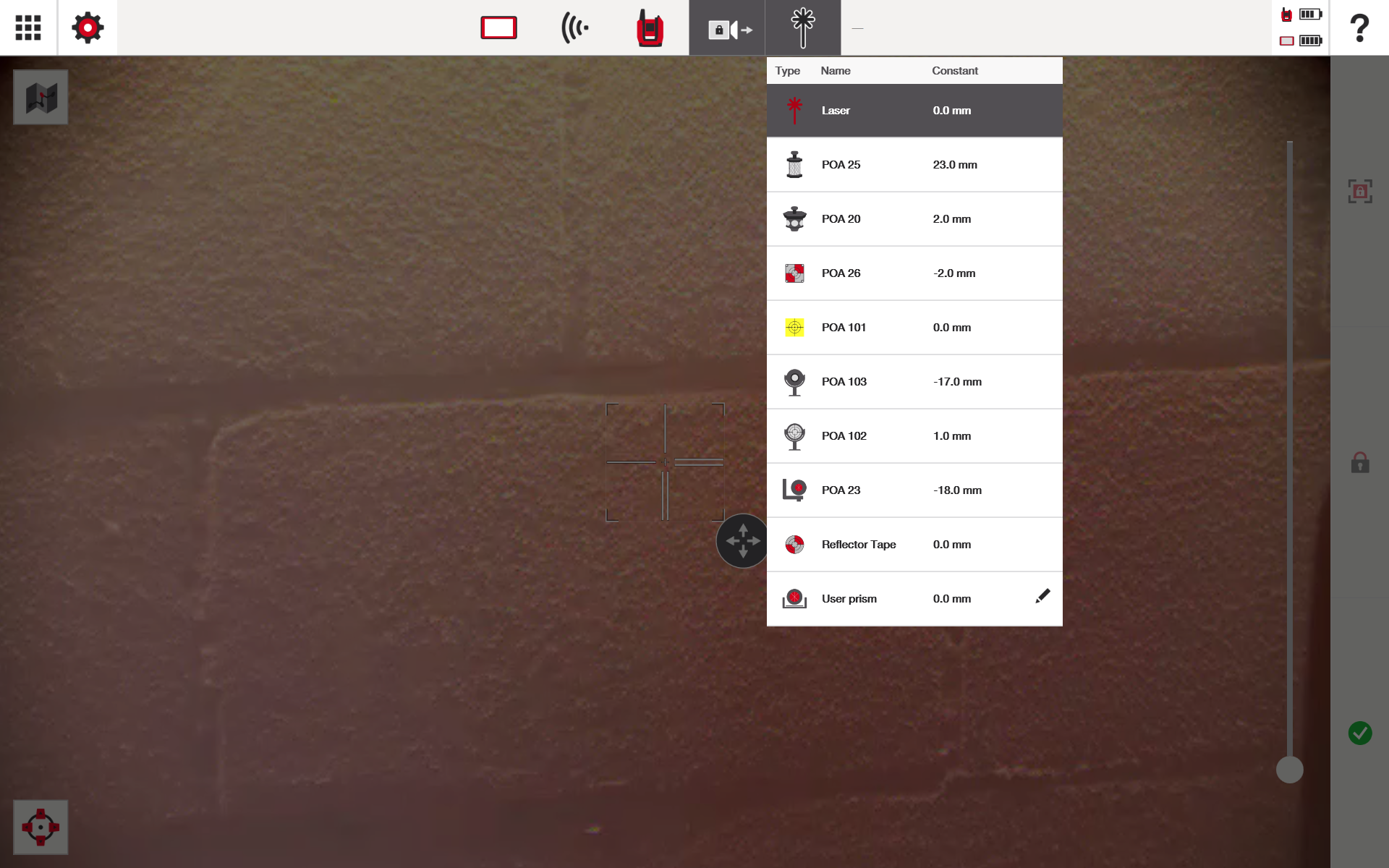

On the top of the screen, you can select the prism or target type, as well as laser measurement if necessary

Central crosshair indicates the current target point with a move or pan indicator showing directional adjustment when Smart Target is enabled

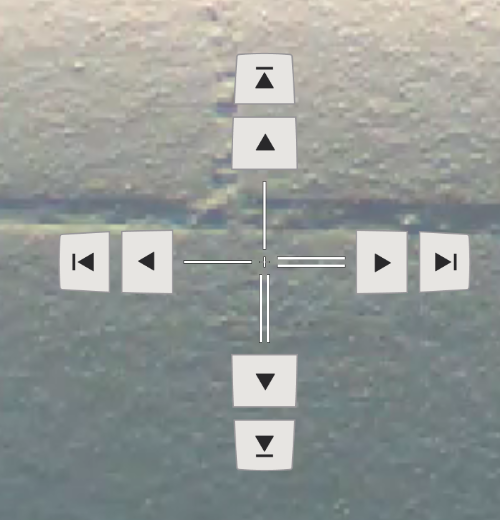

The icon in the bottom left changes how the crosshair moves, and adds buttons for small directional adjustments

This icon in the top right searches for a target in the camera view, and locks onto a prism or target

Green check mark on the bottom right confirms the selected camera position of the PLT

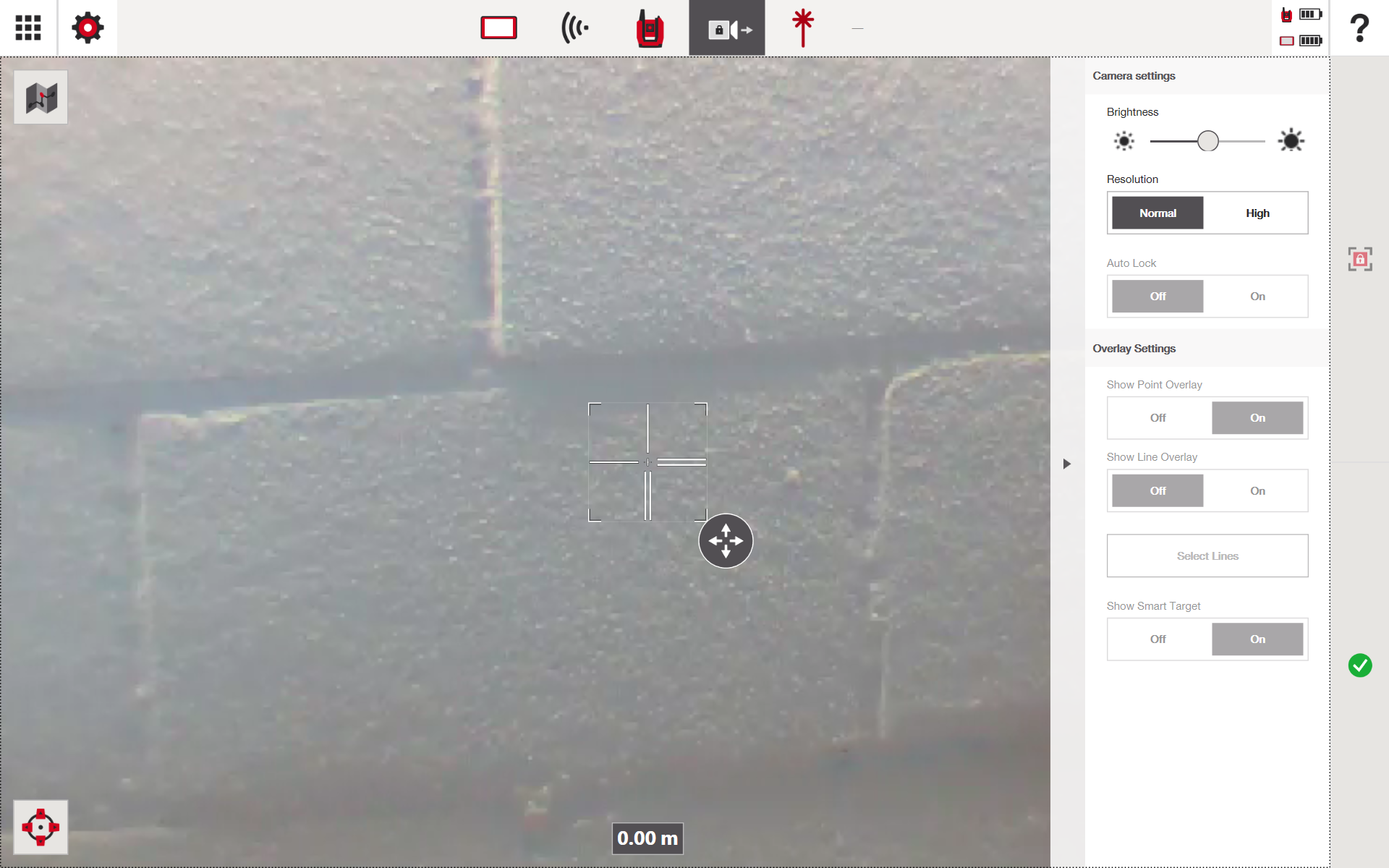

The PLT 400 camera view includes a dedicated camera settings panel on the right side of the screen

The brightness slider adjusts the camera exposure, making the image brighter or darker

he resolution setting improves the quality of the live camera feed when set to High

Auto lock can be toggled on the right side

For the overlay settings found in the tab on the right side refer to this article about screen and view settings
The zoom level is displayed at the bottom of the screen



While in the camera view, click the camera icon in the top left to switch to the CAD view of the drawing
While in the CAD view settings, click the camera icon in the top left to return to the camera view

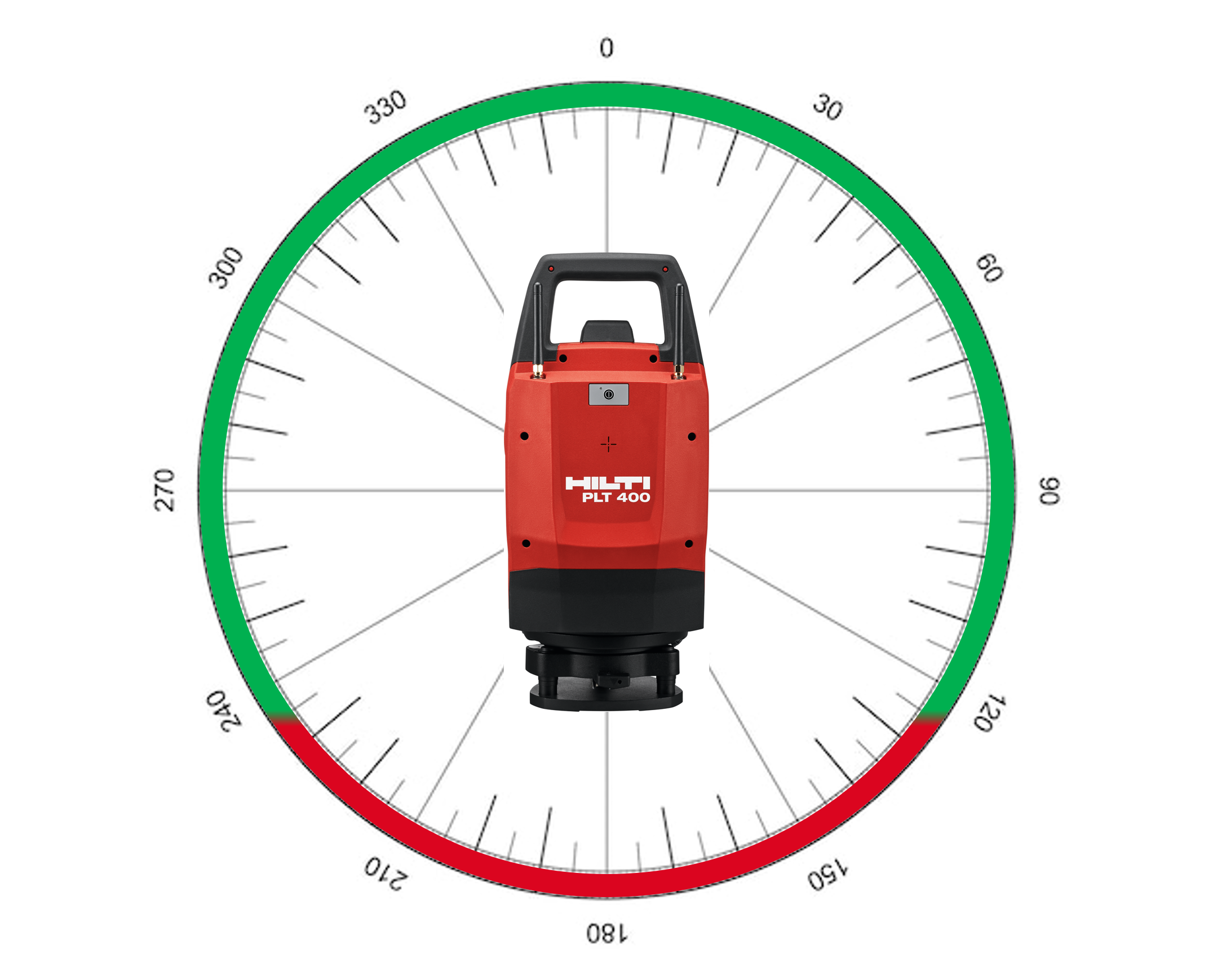

When GPS is enabled, the Find Me icon in the bottom left allows the PLT to locate the tablet within the permitted angle

Additional PLT 400 Features

PLT 400 allows the camera view to be open while it locks onto targets

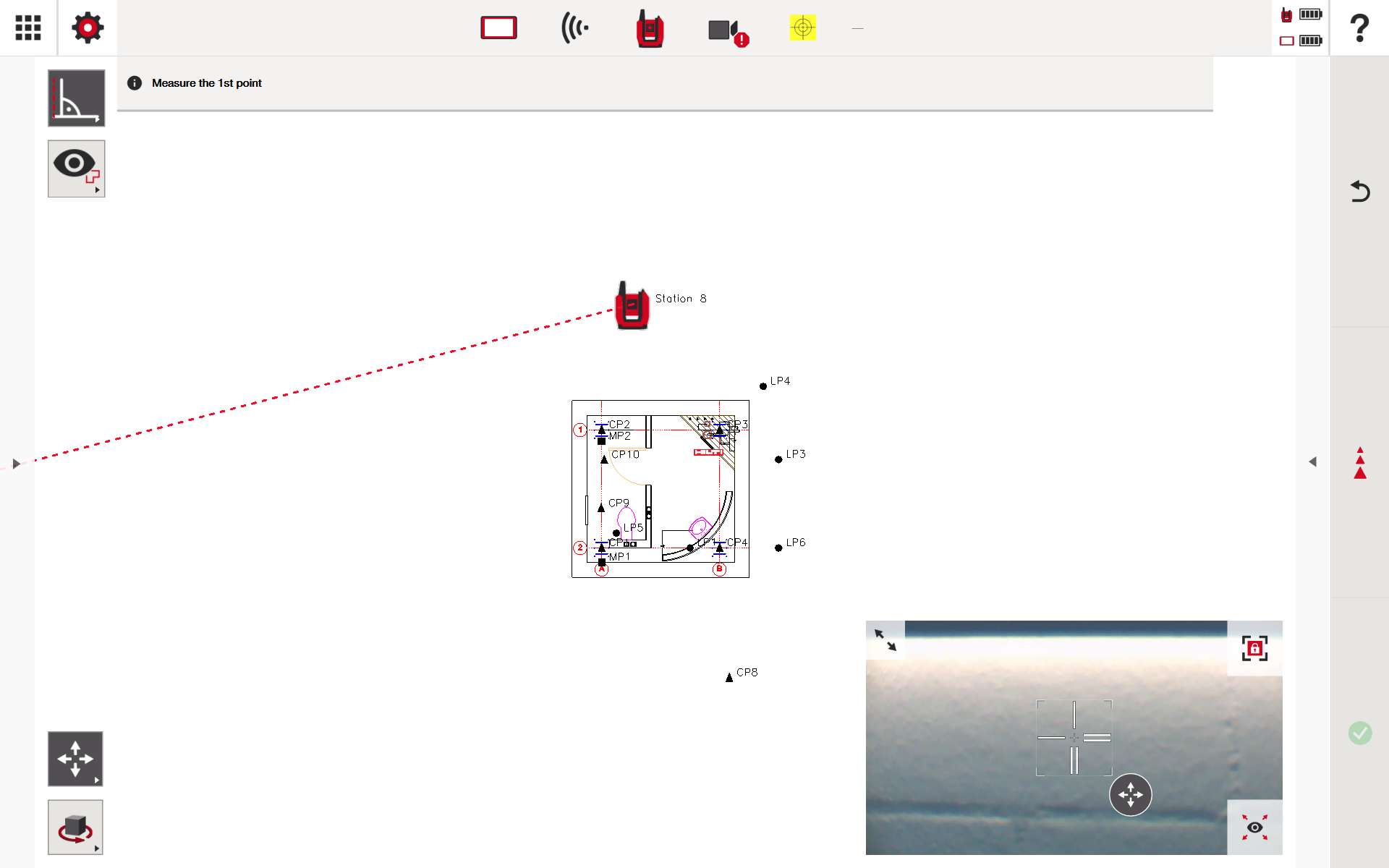

When an application is selected in the CAD view, a camera icon appears in the bottom right, clicking it opens a smaller camera view in the same corner
Smaller camera view displayed in the bottom right of the screen

Clicking these arrows in the small camera view collapses the camera view

This icon in the top right searches for a target in the camera view, and locks onto a prism or target

This icon in the bottom right of the camera view zooms out and searches for possible targets

Typical Workflow (PLT 300 & PLT 400)

  1. Open the Camera View
  2. Select the prism target type or laser
  3. Position the PLT 300 so the prism or target is visible in the camera view
  4. Align the target using the central crosshair
  5. Adjust the zoom if needed for better visibility
  6. Click the lock icon in the top right of the screen

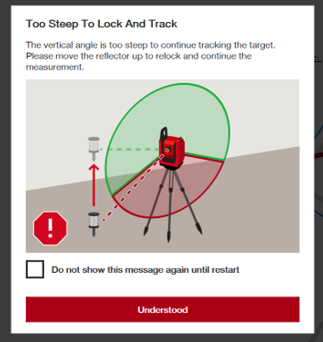

  7. Wait for the tool to lock onto the prism or target, this is indicated by a camera icon with a lock symbol

Best Practices (PLT 300 & PLT 400)

  • Clean the camera lens regularly for optimal image quality
  • Adjust brightness and resolution on PLT 400 to match the lighting conditions
  • Use overlays on PLT 400 only when needed to avoid visual clutter
  • Carefully confirm alignment before proceeding, especially when high precision is required
