Tool Could Not Calibrate

This article explains what causes the “Tool Could Not Calibrate” message and provides practical steps you can take to resolve it, regardless of whether it was triggered during tilt calibration or field calibration.

Sub-error codes associated with this error: "Tilt: Unknown," "Tilt 5: Timeout," "Tilt 1: General Exception," "Tilt 11: Wrong State," "Filed 11: Wrong State," "Field 1: General Exception," "Field: New Crosshair Offset Above Limit," "Field: New Trunnion Axis Error Above Limit," "Field: New Collimation Error Above Limit," "Field: Unknown," "Field 5: Timeout."

What "Tool Could Not Calibrate" Message Means

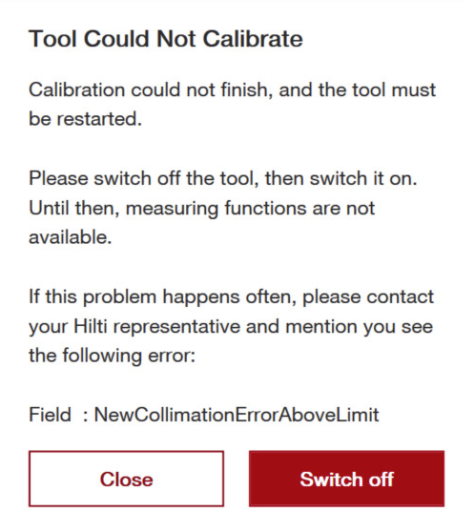

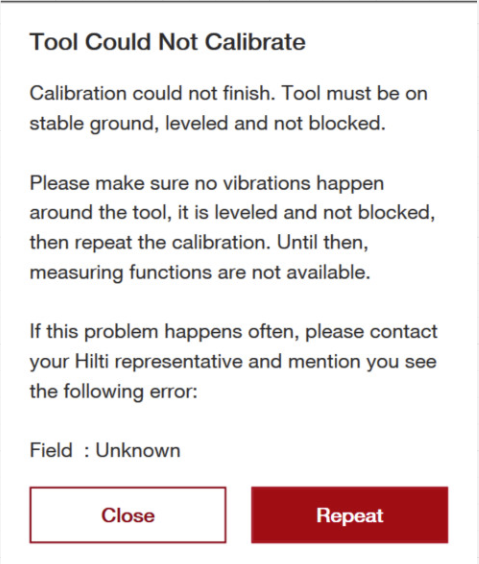

The “Tool Could Not Calibrate” message is a final fallback message shown when the instrument is unable to successfully complete a calibration cycle.

Unlike more specific messages (such as Tool Is Unstable or Tool Is Too Tilted to Level), this message means:

The calibration process could not reach a valid or trustworthy result, regardless of the specific reason.

At this point, the instrument intentionally stops calibration to prevent inaccurate geometry, and it may require a restart before retrying.

Why Multiple Issues Can Lead to This Message

This message can be reached through many different internal paths, including:

• Calibration timeouts
• Calibration results outside acceptable limits
• Temporary wrong or undefined internal states
• Unknown or unexpected conditions
• Escalations from tilt or field calibration that could not be resolved automatically

While the internal cause may differ, the underlying requirement is always the same:

The instrument must be physically stable, correctly leveled, unobstructed, and in a clean optical environment before calibration can succeed.

When that baseline cannot be established in time, calibration stops and this message appears.

Why the Tool Stops Instead of “Pushing Through”

Calibration is where the instrument verifies and updates its internal geometry:

• Axis alignment (the vertical axis, horizontal/trunnion axis, and optical axis must line up: left/right rotation, up/down rotation, and the line the telescope actually looks along)
• Optical centering (whether the crosshair, camera image, prism tracker optics, and EDM (laser) beam are all aligned to the same true optical centerline of the telescope)
• Encoder relationships (how the horizontal and vertical angle encoders relate to the telescope and axes to ensure accurate and repeatable rotations)
• Compensation limits (the limit at which the system will no longer attempt to compensate, as it will not be reliable to do so)

When the axes are aligned correctly, telescope rotation is around the true center of motion, horizontal readings are the same regardless of sighting direction, vertical readings agree when telescope is flipped "upside down," and geometry behaves symmetrically.

When the optics are centered, your aimed location via the telescope and camera will be the same as your measured location (where the EDM is hitting). In addition, your prism tracker optic, when centered on a prism, will also be the location the EDM is hitting when measuring it.

If calibration were allowed to complete anyway under poor conditions:

• Vertical geometry could be incorrect
• Height errors could grow with distance
• Measurements could lose repeatability (one point measured twice would appear in different spots)
• Accuracy loss could occur without warning

Rather than risking silent inaccuracies, the tool stops early and clearly.

Best Method to Resolve: Reset and Re‑establish Good Conditions

Step 1: Power‑cycle the tool

If the message instructs you to restart:

• Switch the tool off
• Wait a few seconds
• Switch it back on

This clears temporary states and prepares the system for a clean calibration attempt.

Step 2: Confirm the tool is mechanically leveled

Before retrying any calibration:

• Adjust tripod legs so the head is close to level. Use a manually adjustable tribrach if necessary, like the POAW 71.
• Use leveling screws carefully — aim to be comfortably within range, not just “barely centered”

Tilt compensation does not replace correct mechanical leveling.

Step 3: Ensure a stable setup

Make sure:

• The tool is on solid ground
• There is no vibration from footsteps, wind, machinery, or flexible surfaces
• You are standing clear while calibration runs

Even subtle motion can cause calibration to stall or time out.

Step 4: Check that nothing is blocked

Ensure:

• No objects are obstructing the telescope (such as fog within the lens or dirt)
• Mirrors and lenses are clean
• No covers, accessories, or debris are interfering with motion or optics

Step 5: Control light conditions (especially for field calibration)

If working indoors or outdoors in bright conditions:

• Avoid reflective surfaces below the tool
• Block strong sunlight or uplighting
• Turn off work lights shining upward
• Shade or darken the area beneath the instrument if needed

Calibration optics are more sensitive to stray light than when performing normal measurements.

Step 6: Re‑run the calibration

Once conditions are corrected:

• Repeat the calibration
• In most cases, calibration will complete normally once the baseline conditions are restored

What This Message Does Not Mean

The “Tool Could Not Calibrate” message does not automatically indicate:

• A hardware failure
• Permanent damage
• That the instrument needs service

In the majority of cases, it reflects situational conditions that prevent calibration from completing safely.

When to Escalate

If this message:

• Appears repeatedly in well‑controlled conditions
• Persists after restart, careful leveling, stabilization, and clean optics
• Occurs on flat, stable ground with good lighting

Then contacting support or service is appropriate.

Final Reminder

This message exists to protect measurement integrity.

By resetting the tool and re‑establishing good physical, geometric, and optical conditions, you give the instrument what it needs to complete calibration correctly, and keep your measurements trustworthy.
